Model 32S
Three Phase Duplex Alternating Pump Control with Override in Stainless Steel Enclosure
The Model 32S control panel is designed to alternately control two three phase pumps in industrial and commercial water and sewage systems using the robust DPC-4F Pump Control Four Float Controller for pump sequence, alternation, selection, lag pump delay time and alarm.
If a high water alarm condition occurs, the high water alarm float activates the audible/visual alarm system along with auxiliary contacts for remote alarm. Common applications include lift stations and pump chambers. Models available with intrinsically safe relay for circuit extension into hazardous locations.
This product is available to use with our Rapid Set™ mounting system to simplify your control package installation. The durable welded, stainless-steel, white power-coated frame with sunshield protects both operators and controls from the weather.
Features
Panel Features:

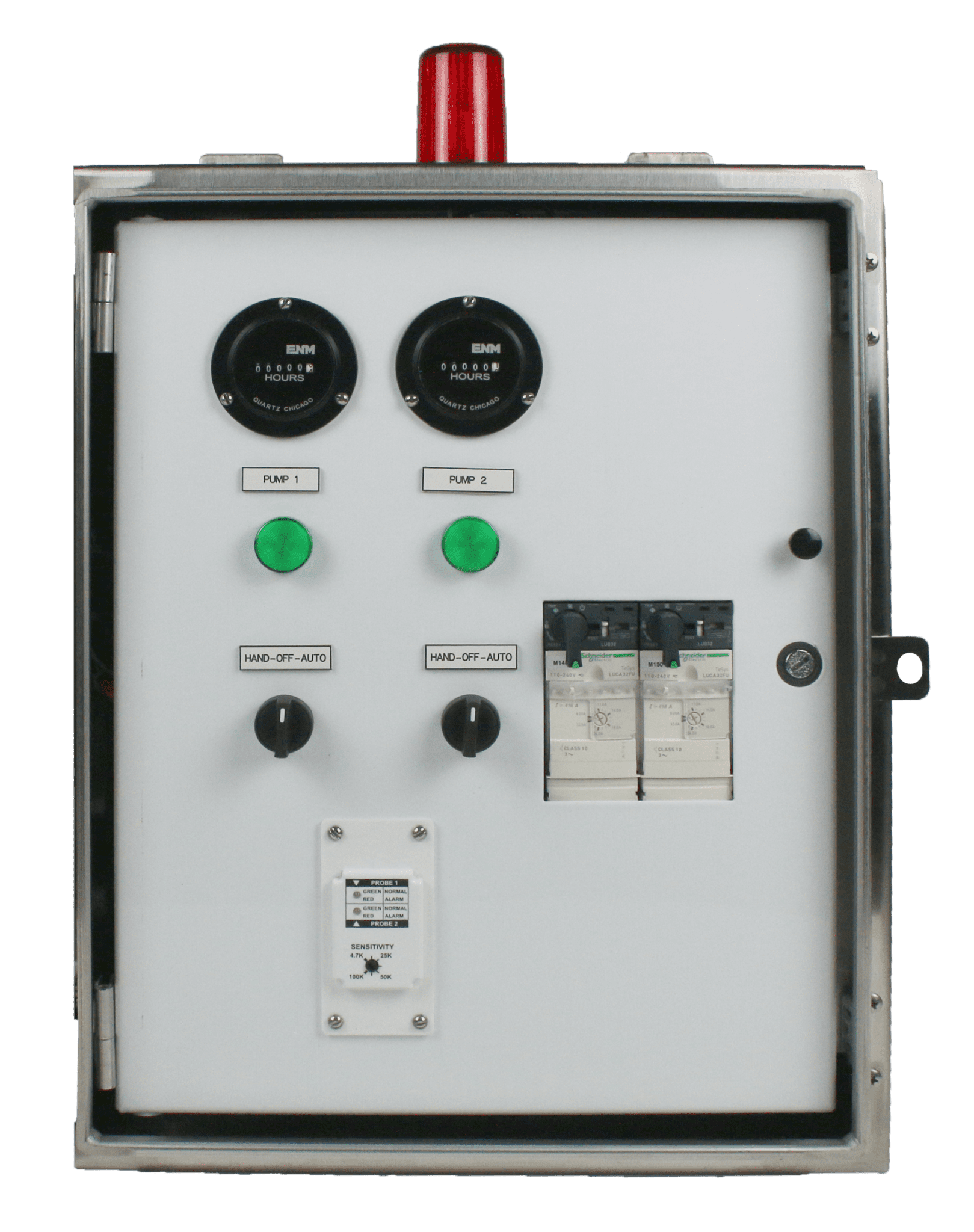

- Padlockable NEMA 4X stainless steel enclosure
- Single-point incoming power connection
- IEC HP rated motor starter with adjustable overload module
- 10HP max @ 208V; 240V; 480V three phase
- Class 10 ambient compensated overload relay
- Pump short circuit disconnect and overload reset accessible through the inner door
- Tri-voltage step-down control transformer
- Separate alarm/control fuses
- Override circuit to operate lag pump if lead float fails
- Alternator relay for even run time
- 22mm pilot devices with engraved labels
- Seal leak circuits for single or double probe pumps
- Red flashing alarm beacon and audible horn
- Pump run indicator lights
- Seal leak indicator lights
- Alarm silence/test push button
- Hand-Off-Auto selector switches
- Overtemp shutdown for motor winding temperature switches (auto reset)
- 16 AWG MTW control wire
- Lag delay timing relay
- Elapsed time meters
- Auxiliary alarm contact
Overload Modules (sold separately, each panel requires two modules):
- Overload module, 1.25 – 5.0 FLA
- Overload module, 4.5 – 18.0 FLA
- Overload module, 8.0 – 32.0 FLA
Option:
- Lighting arrestor
UL/cUL Listed
Five-Year Limited Warranty
Specifications
ENCLOSURE:
- 20 x 16 x 8 inches (50.8 x 40.6 x 20.3 cm) TYPE 4X stainless steel with mounting feet
ALARM HORN:
- 95 decibel rating
