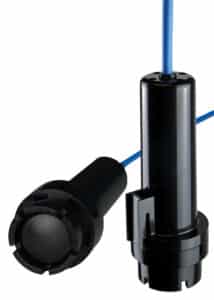

Sub-X™ LT Transmitter

The Sub-X™ LT submersible level transmitter is designed for continuous level monitoring. It measures the hydrostatic pressure of the water above the sensor and outputs a standard 4-20 mA signal proportional to the water level. The robust design of the Sub-X™ LT transmitter provides a reliable and low maintenance solution for level control applications, including sewage/effluent lift stations, stormwater pump stations, non-potable water systems, tanks, wet wells, and reservoirs.

The transmitter wetted components are designed with nonconductive materials to provide an electrical isolation barrier. The pressure sensor is isolated from process material by a protective VITON® diaphragm. A stainless steel hose clamp is included for mounting the transmitter to a pipe towards the bottom of the tank. The Sub-X™ LT transmitter must be clamped. For free hanging installations, use the Sub-X™ transmitter.

This exciting product is available as option code 31A (25 ft), 31B (50 ft), and 31C (100 ft) for the following control panels:

IFS Single Phase Simplex
IFS Single Phase Duplex
EZI Single Phase Simplex
EZI Single Phase Duplex

Viton® is a trademark of E. I. DuPont de Nemours and Company Corporation

Two-year limited warranty
